EDAS FOX Standard Series-Get Ahead, Stay Ahead!

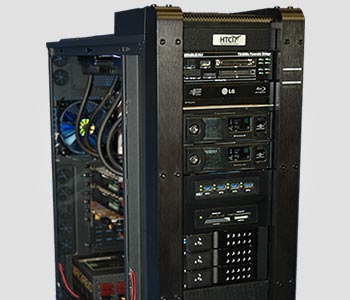

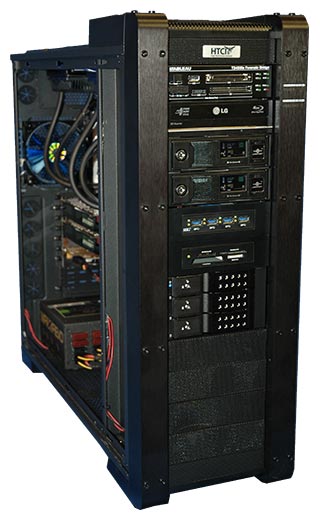

The EDAS FOX (Electronic Discovery Analysis System Forensically Optimized for eXploitations) “Standard” edition is a high power, great value forensic platform for all professional forensic investigators. The EDAS FOX “Standard” was designed with today’s forensic investigator in mind; it combines a high-speed multi-core processorand ultra-fast memory with a high performance SSD to give you the most performance at a great value. All EDAS FOX Systems are user friendly, and support all Windows based forensic platforms. Included in each system is a demo license of HTCI DART software for complete cell phone analysis capability without any additional equipment required.
The EDAS FOX “Standard” forensic system supports IDE, SATA, SAS, USB, FW and Notebook drives. If your department is considering doing digital forensics and you need a lot of power in a tight budget the EDAS FOX “Standard” forensic system is the product for you. Only high end, powerful, energy efficient components have been used in the production of the EDAS FOX “Standard” series. EDAS FOX is so confident of this product that we offer an industry setting standard of 3 years parts and depot labor warranty.
Features
An industry setting standard of 3 years parts and depot labor warranty.
- A High Speed Intel i7 6800K Six Core Processor clocked at 3.4 Ghz (3.6 Ghz Turbo) Cooled by an Intel Sealed Water Cooling System to give you stable high-speed performance.
- 64 GB of High Speed High Capacity DDR4 2400 Quad Channel Memory
- An NVidia GeForce GTX 1060 with multi-monitor support to ensure a silky smooth experience whether you are processing cases, writing reports, or viewing evidence
- A ultra-fast 512GB M.2 SSD OS Drive to give you lightning fast access to your EDAS FOX System
- 512GB SSD for Evidence
- 512GB SSD for Cache Drive
- A High Capacity, High Speed 4TB 7200RPM 6Gbp/s Hard Disk Data Drive to store files.
- Dual 10/100/1000 Mbps LAN Ports, with Teaming function allowing two single connections to act as one for twice the bandwidth.
- High Speed USB 3.0, and USB 3.1 greatly improving the speed of the onboard USB 2.0 ports.
- High Speed 6 Gbp/s eSATA Ports, giving you the fastest way to connect external devices to the system.
- 3x Hot Plug SATA Tray-less Bays, giving you access to easy to use, high speed hard drive bays for extra storage.
- An Integrated Write-Blocked Multi-Card Reader to ensure forensically sound access to all types of media cards.
- An integrated Write-Blocked Forensic Bridge, With USB 3.0, SATA, IDE, SAS, FireWire, and PCIe Connections.
- A highly efficient 1300 Watt 80 Plus Gold Certified Fully Modular Power Supply to ensure stability, and high power capacity for all your needs.
- A 24 Inch LED Monitor
- Wireless Keyboard / Mouse Combo
- This system is available with or without RAID configuration as per user's requirement
Technical Specification
| Supported CPU |
|
| CPU Socket Type |
LGA 2011-v3 |
| CPU Type |
Core i7(LGA 2011v3) |
| CPU |
|
| Processor Number |
i7-6800k |
| Number of CPU Cores |
6 |
| Number of CPU Threads |
12 |
| CPU Speed (GHz) |
3.4 GHz |
| Turbo Speed (GHz) |
3.6 GHz |
| CPU Cache |
15 MB |
| Lithography |
14 nm |
| Heatsink |
Corsair Hydro Series H80i Liquid Cooled Solution |
| Chipsets |
|
| North Bridge |
Intel X99 Chipset |
| Memory |
|
| Number of Memory Slots |
8 x DIMM |
| Memory Speed |
DDR4 2400 |
| Memory Included |
64GB (4x 16GB) |
| Maximum Memory |
128 GB |
| Channel Supported |
Quad Channel |
| Expansion Slots |
|
| PCI Express x16 |
7 |
| Video Card |
|
| Chipest Manufacture |
NVIDIA |
| GPU |
GeForce GTX 1060 |
| Memory Size |
6GB GDDR5 |
| HDMI |
1 |
| Dual-Link DVI |
1 |
| Display Port |
3 |
| Storage Device |
|
| SATA 6Gb/s |
10 |
| Storage Configuration |
|
| OS Drive |
512GB M.2SSD Drive |
| Evidence |
512GB SATA 6Gb/s SSD |
| Primary Evidence Cache |
512 SATA 6Gb/s SSD |
| Data Drive |
4TB 7200RPM SATA 6Gb/s Hard Disk Drive |
| Onboard Audio |
|
| Audio Chipest |
Realtek ALC1150 |
| Audio Channels |
8 Channels |
| Onboard LAN |
|
| LAN Chipset |
Intel I210-AT |
| Second LAN Chipset |
Intel I218LM |
| Max LAN Speed |
10/100/1000Mbps |
| Rear Panel Ports |
|
| LAN (RJ45) port(s) |
2 |
| USB 3.0 |
10 x USB 3.0 |
| USB 3.1 |
2 x USB 3.1 |
| Optical S/PDIF Out |
1 |
| Audio Ports |
8 Channel |
| Front I/O Ports |
|
| USB 2.0 |
2x USB 2.0 |
| USB 3.0 |
6 x USB 3.0 (2 Top Mounted, 4Front Mounted) |
| eSATA |
1x eSATA 6Gbp/s |
| Front Audio |
2x Front Audio (Headphone and Microphone) |
| Front Mounted Bays |
|
| Optical Disk Drive |
16 x Blu-Ray Burner Drive |
| Forensic Bridge |
1x Write Protect Bay(USB 3.0, SATA, SAS, IDE, Firewire 800, and PCIe) |
| Cooling Bay |
Hard Drive Cooling Bay |
| Evidence Drive Bay |
2x 2.5″ SATA Trayless |
| Data Drive Bay |
1x SATA Trayless |
| Front I/O Panel |
1x 2 Port USB 3.0 Panel |
| Multi-Card Reader |
1x Write Blocked Multi-Card Reader |
| SATA Bay |
3x SATA 3.5″ Trayless Bays |
| Internal I/O Connectors |
|
| Onboard USB 2.0 |
2 x USB 2.0 Headers |
| Onboard USB 3.0 |
2 x USB 3.0 Headers |
| Front Audio Header |
1x Front Audio Header |
| Features |
|
| On-Board Power Button |
Yes |
| On-Board Reset Button |
Yes |
| On-Board CMOS Clear |
Yes |
| On-Board Diagnostic LED |
Yes |
| PCI Express Revision |
3 |
| Operating System |
|
| Window 10 |
64-Bit Professional |
| Power Supply |
|
| Maximum Wattage |
1300 Watts |
| 80 Plus Certification |
80 Plus Gold Certified |
| Modular |
Fully Modular Power Supply |
| System Dimensions |
|
| Width |
9.06 Inches |
| Height |
24.33 Inches |
| Depth |
26.10 Inches |
| Weight |
65+Pounds |
| Peripherals Included |
|
| Monitors |
1 x 24 Inch LED Monitor |
| Keyboard / Mouse |
Wired or Wireless Combo |
| Tool Kit |
Multi- Piece Toolkit to assist in Digital Evidence Gathering |
EDAS FOX Optimized - Get Ahead, Stay Ahead!

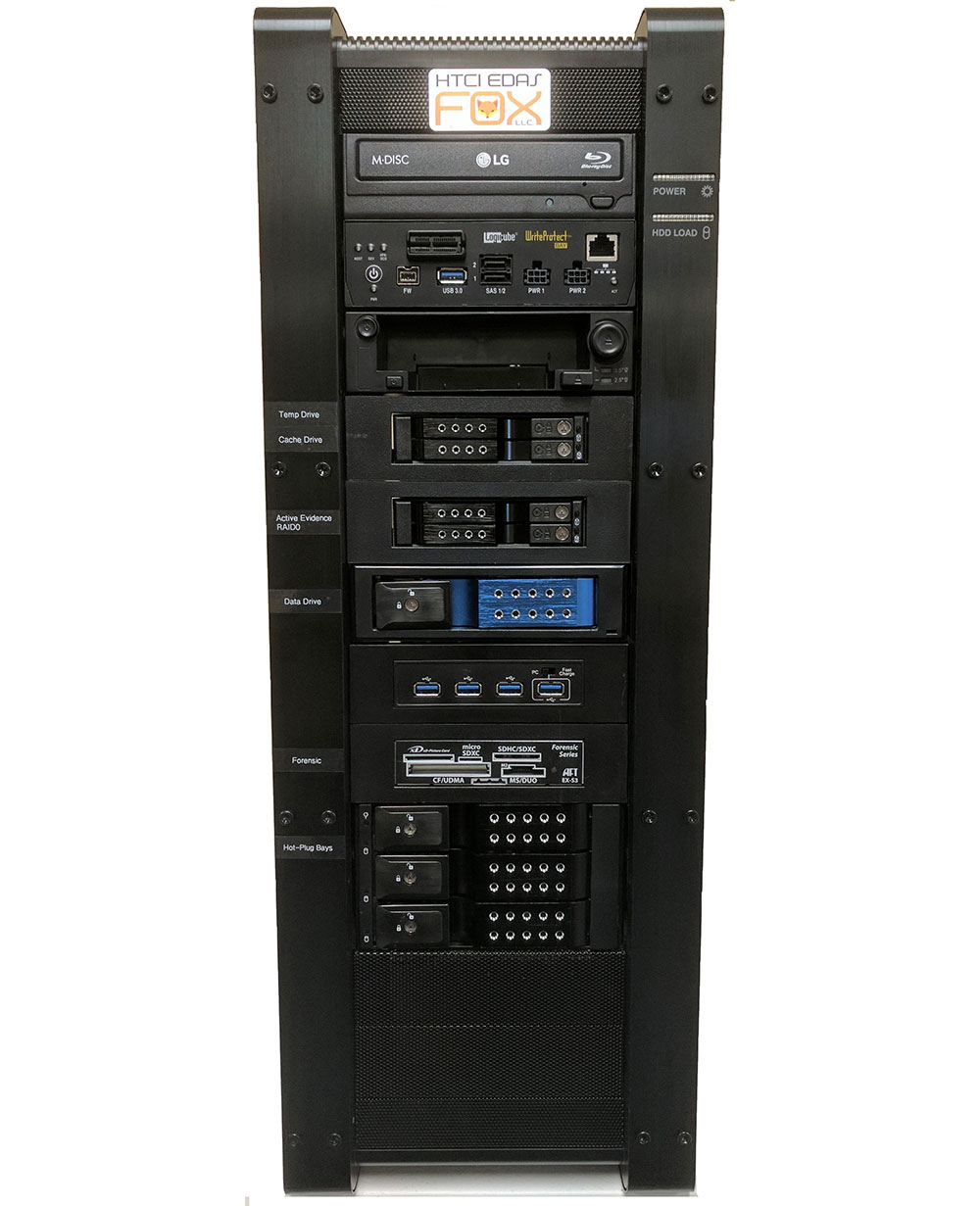

The EDAS FOX (Electronic Discovery Analysis System Forensically Optimized for eXploitations) “Optimized” edition is a high speed dual CPU system featuring the latest in Intel based CPU Technology. The EDAS FOX “Optimized” was designed to bring the very best in processing power to today’s forensic investigators; Combining dual high-speed multi-core processors, high speed Error Checking Memory, and a high performance SSD to give you the best performance available. All EDAS FOX Systems are user friendly, and support all Windows based forensic platforms.
Features
An industry setting standard of 3 years parts and depot labor warranty.
- Two High Speed Intel ® Xeon E5-2630v4 Ten Core Processor Clocked at 2.2 Ghz (3.1 Ghz Turbo)
- Cooled by a High Performance Heat Sink to give you stable high-speed performance
- 64GB of High Speed, Error Checking DDR4 2133 Quad Channel Memory
- An NVidia GeForce GTX 1060 with multi-monitor support to ensure a silky smooth experience whether you are processing cases, writing reports, or viewing evidence
- A ultra-fast 512GB M.2 SSD OS Drive to give you lightning fast access to your EDAS FOX System
- Active Evidence 2 x 512GB SSD 6Gbp/s SSD’s in RAID 0 configuration
- 512GB SSD for Temp Drive
- 512GB SSD for Cache Drive
- A High Capacity, High Speed 4TB 7200RPM 6Gbp/s Hard Disk Data Drive to store files.
- Intel® I210-AT, 2 x Gigabit LAN Controller(s)
- High Speed USB 3.0 for up to 10X Faster data transfers than USB 2.0
- 3x Hot Plug SATA Tray-less Bays, giving you access to easy to use, high speed hard drive bays for extra storage.
- An Integrated Write-Blocked Multi-Card Reader to ensure forensically sound access to all types of media cards.
- An integrated Write-Blocked Forensic Bridge, With USB 3.0, SATA, IDE, SAS, FireWire, and PCIe Connections.
- A highly efficient 1300 Watt 80 Plus Gold Certified Fully Modular Power Supply to ensure stability, and high power capacity for all your needs.
- A 24 Inch LED Monitor
- Wireless Keyboard / Mouse Combo
- This system is available with or without RAID configuration as per user's requirement
Technical Specification
| Supported CPU |
|
| CPU Socket Type |
Intel® Socket 2011-3 |
| CPU Type |
Dual Intel processor E5-2600 v4 product family |
| CPU |
|
| Processor Number |
E5-2630v4 |
| Number of CPU Cores |
10 |
| Number of CPU Threads |
20 |
| CPU Speed (GHz) |
2.2 GHz |
| Turbo Speed (GHz) |
3.1 GHz |
| CPU Cache |
25 MB |
| Lithography |
14 nm |
| Heatsink |
High Performance Air Cooled Socket 2011 Solution |
| Chipsets |
|
| North Bridge |
Intel® C612 PCH X-99 |
| Memory |
|
| Number of Memory Slots |
16 x DIMM |
| Memory Speed |
DDR4 2133 |
| Memory Included |
64GB (4x 16GB) |
| Maximum Memory |
1 TB |
| Channel Supported |
Quad Channel |
| Expansion Slots |
|
| PCIe 3.0/2.0x16 |
6 |
| Video Card |
|
| Chipest Manufacture |
NVIDIA |
| GPU |
GeForce GTX 1060 |
| Memory Size |
6GB GDDR5 |
| HDMI |
1 |
| Dual-Link DVI |
1 |
| Display Port |
3 |
| Storage Device |
|
| SATA 6Gb/s |
10 |
| Storage Configuration |
|
| OS Drive |
1 x 512GB M.2 6Gbp/s SSD Drive |
| Temp Drive |
1 x 512GB SATA 6Gb/s SSD Drive |
| Cache Drive |
1 x 512GB SATA 6Gbp/s SSD Drive |
| Active Evidence |
2 x 512GB SSD 6Gbp/s SSD’s in RAIDO |
| Data Drive |
4TB 7200RPM 6Gbp/s Hard Disk Drive |
| Onboard Audio |
|
| Audio Chipest |
Realtek® ALC888 8-Channel High Definition Audio CODEC |
| Audio Channels |
8 Channels |
| Onboard LAN |
|
| LAN Chipset |
Intel® I210-AT, 2 x Gigabit LAN Controller(s) |
| Max LAN Speed |
10/100/1000Mbps |
| Rear Panel Ports |
|
| PS/2 |
1 |
| USB 1.1/2.0 |
2 |
| USB 3.0 |
4 |
| USB 3.1 |
4 |
| LAN(RJ45) ports |
2 |
| S/PDIF Out |
1 |
| Front I/O Ports |
|
| USB 1.1/2.0 |
2x USB 2.0 |
| USB 3.0 |
6 x USB 3.0 (2 Top Mounted, 4 Front Mounted) |
| eSATA |
1x eSATA 6Gbp/s |
| Front Audio |
2x Front Audio (Headphone and Microphone) |
| SATA HDD Dock |
1x Top Mounted SATA Dock for 3.5 & 2.5 Inch Drives |
| Front Mounted Bays |
|
| Optical Disk Drive |
16 x Blu-Ray Burner Drive |
| Forensic Bridge |
Write Protect Bay (USB 3.0, SATA, SAS, IDE, Firewire 800, and PCIe) |
| Cooling Bay |
Hard Drive Cooling Bay |
| Cache Drive/Temp Drive Bay |
2 x SATA Trayless |
| SATA Trayless Data Drive Bay |
1x SATA Trayless |
| Front I/O Panel |
1x 4 Port USB 3.0 Panel |
| Multi-Card Reader |
1x Write Blocked Multi-Card Reader |
| SATA Bay |
3x SATA 3.5″ Trayless Bays |
| Internal I/O Connectors |
|
| Onboard USB 1.1/2.0 |
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
| Onboard USB 3.0 |
1 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin) |
| Front Audio Header |
1x Front Audio Header |
| Operating System |
|
| Window 10 |
64-Bit Professional |
| Power Supply |
|
| Maximum Wattage |
1300 Watts |
| 80 Plus Certification |
80 Plus Gold Certified |
| Modular |
Fully Modular Power Supply |
| System Dimensions |
|
| Width |
9.06 Inches |
| Height |
24.33 Inches |
| Depth |
26.10 Inches |
| Weight |
65+Pounds |
| Peripherals Included |
|
| Monitors |
1 x 24 Inch LED Monitor |
| Keyboard / Mouse |
Wireless Combo (Wired upon request) |
| Tool Kit |
Multi- Piece Toolkit to assist in Digital Evidence Gathering |
